Wine Guardian CS050 Ceiling Mount Cooling System - 99H0370-10
Wine Guardian CS050 Ceiling Mount Cooling System - 99H0370-10
Couldn't load pickup availability

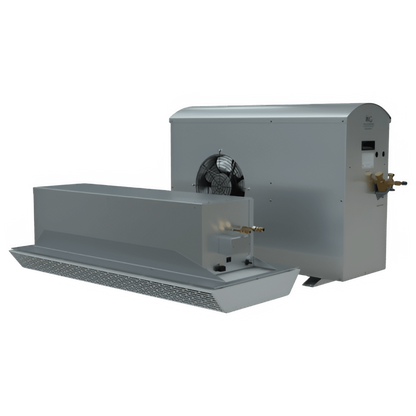

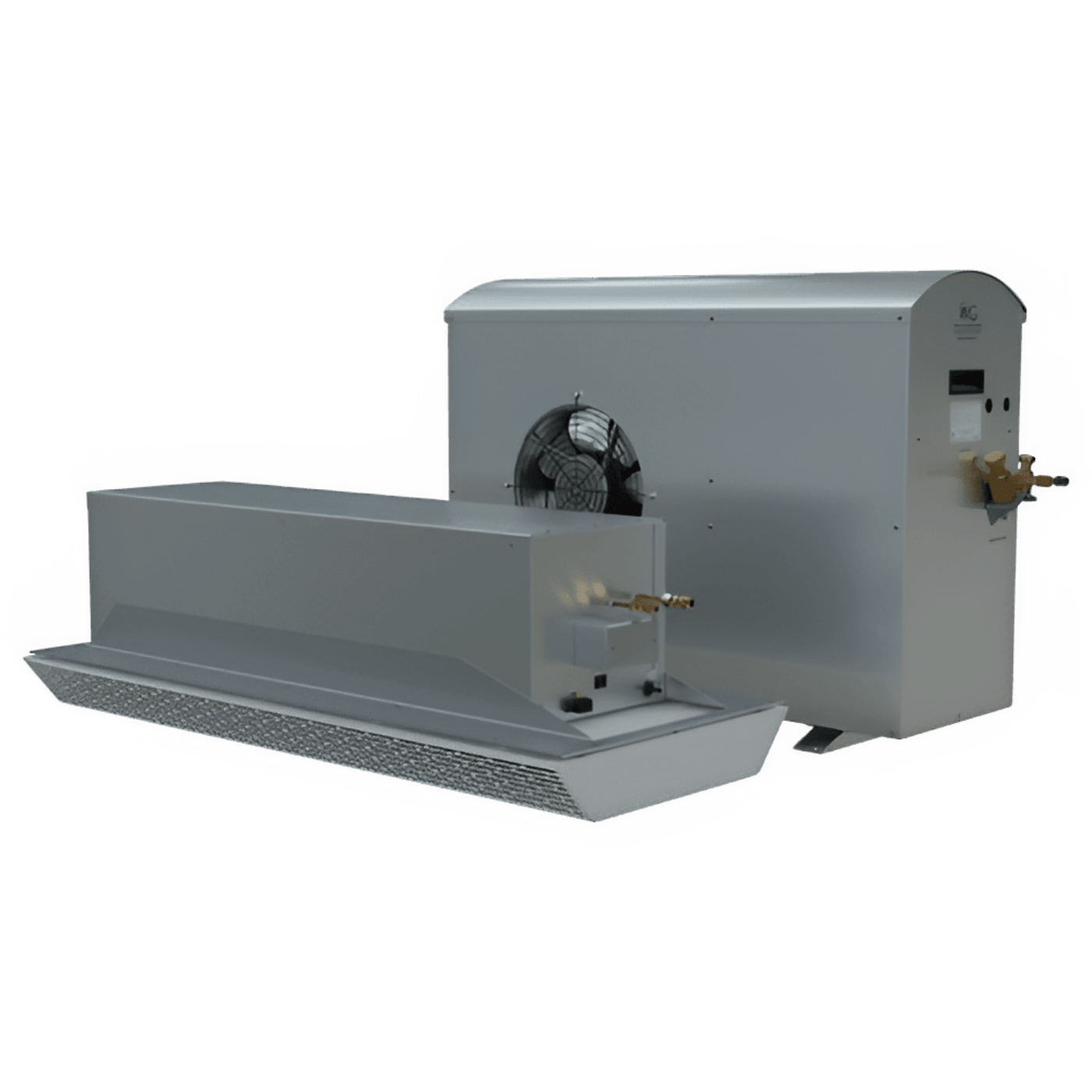

Wine Guardian CS050 Ceiling Mount Cooling System - 99H0370-10
Are you in search of efficient and quiet wine cellar cooling units? Look no further than the Wine Guardian CS050 Ceiling Mount Wine Cooling System, designed to provide optimal cooling without taking up valuable space in your wine cellar.

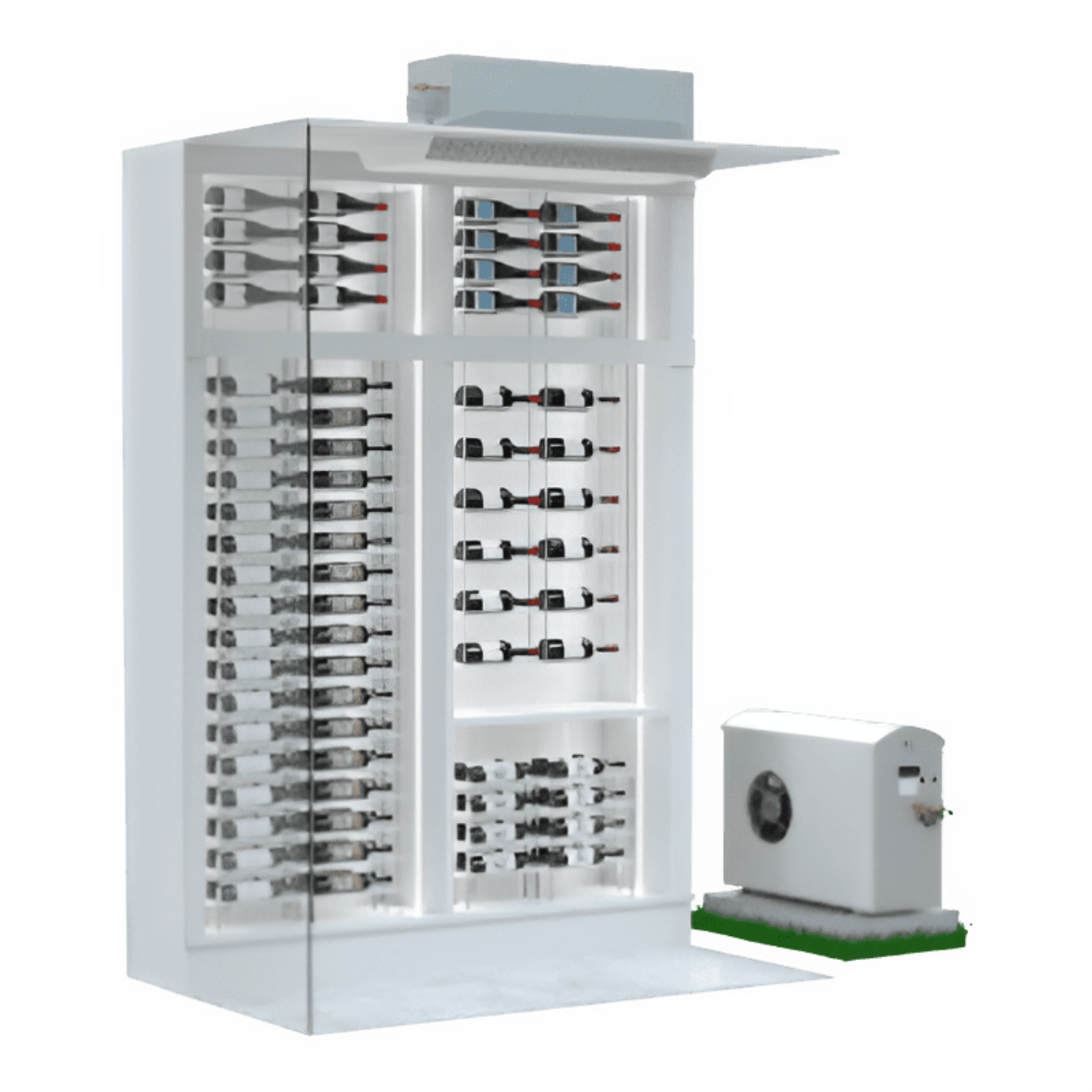

The Wine Guardian CS050 operates on a 60Hz system, ideal for North American standards, including the USA and Canada. With a robust capacity of up to 4,300 BTU/h, it efficiently cools wine cellars up to 2,200 cubic feet. This ceiling-mounted system is perfect for small to mid-size wine rooms where traditional units may not be suitable. It seamlessly integrates into the ceiling, making it ideal for applications like wine displays, glass wine walls, or all-glass wine rooms.
Features
-
Quiet Operation: Designed for minimal noise during operation, ensuring a peaceful environment for your wine collection.
-

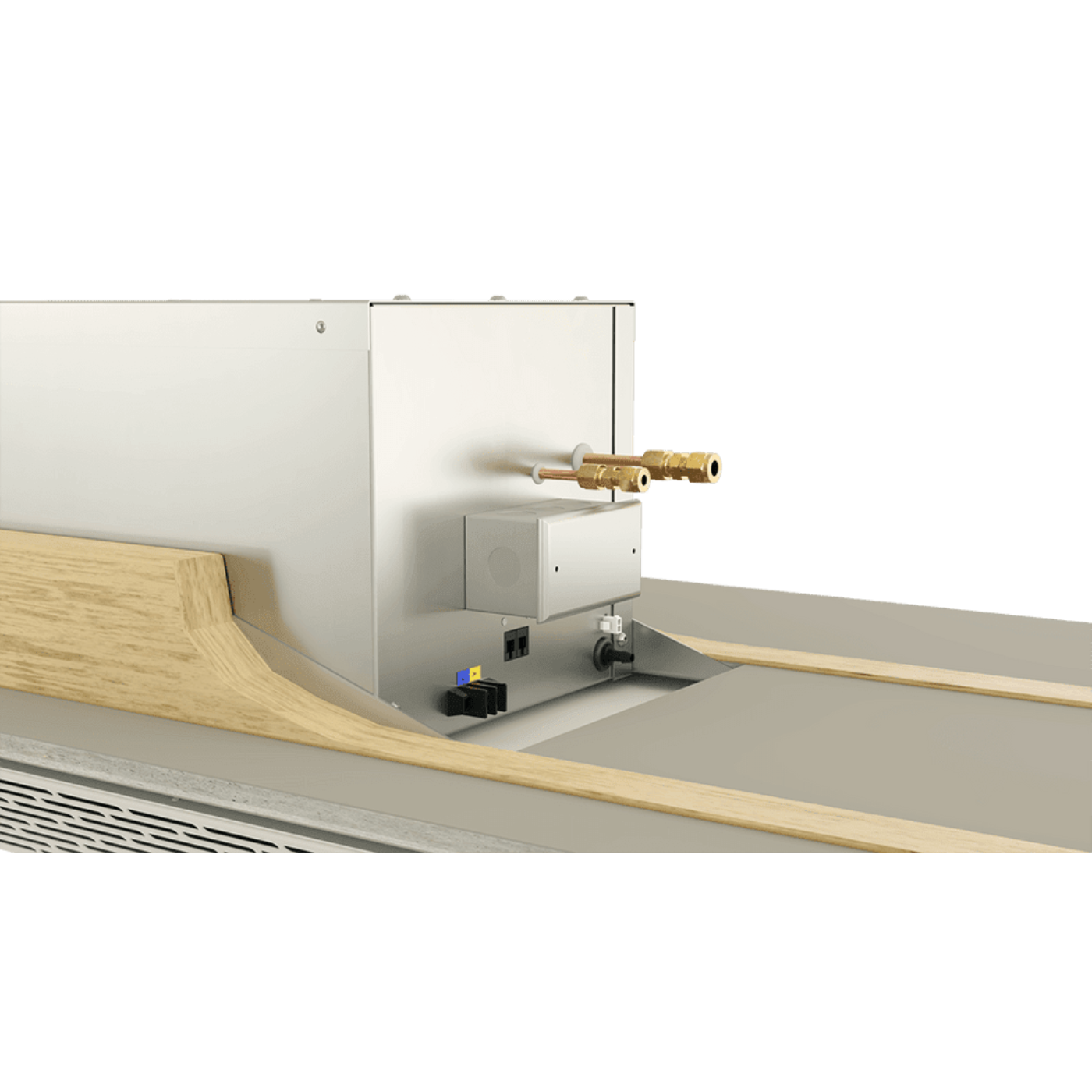

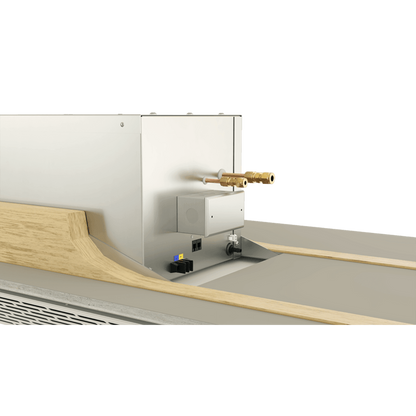

Space-Saving Design: Ceiling-mounted for discreet installation between standard joist construction, preserving cellar aesthetics.
-
Durable Construction: Lightweight and corrosion-proof materials ensure longevity and reliability.
-

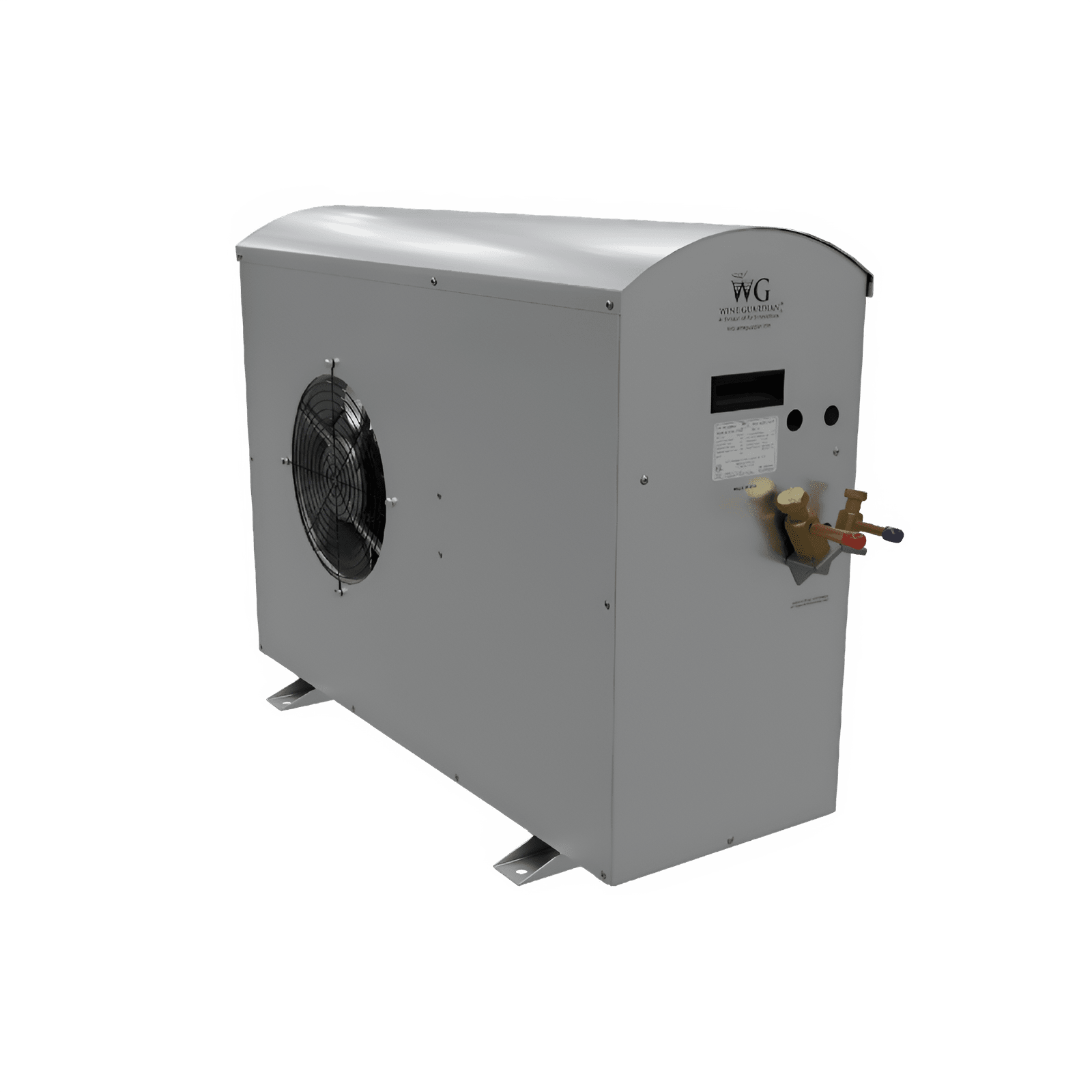

Efficient Cooling: Paired with a specially designed Wine Guardian condensing unit for optimal performance.
-
Low Ambient Protection: Ensures consistent cooling even in extreme temperatures, protecting your wines.
Specifications
| Line Frequency: | 60 HZ |
|---|---|
| Capacity: | 1000- 4050 BTU |
| Volume: | 250 – 2200 ft³ |
| Length: | 43.25" (evaporator) | 34" (condenser) |
| Width: | 18.125" (evaporator) | 12.3" (condenser) |
| Height: | 13.25" (evaporator) | 26" (condenser) |
| Weight: | 48 lbs | 76 lbs (condenser) |
| Electrical: | 115/1/60 | 208-230/1/60 (condenser) |
Video
What Our Experts Think
- Space-Saving Ceiling Mount: Designed for ceiling installation, freeing up valuable floor and wall space in your wine room.
- Powerful Cooling Performance: Ideal for medium to large wine cellars, providing consistent and efficient temperature and humidity control.
- Quiet Operation: Engineered for low noise levels, ensuring an undisturbed environment for wine storage and enjoyment.
- Advanced Controls: Features a user-friendly interface for precise adjustments and monitoring of climate conditions.
- Durable Build: Constructed with high-quality materials for reliability and longevity, even with continuous operation.
- Flexible Installation Options: Comes with versatile ducting and mounting configurations to accommodate various cellar designs.
Q&A
Q: What is the Wine Guardian CS050 designed for?
A: The CS050 is designed for ceiling-mounted installation to provide precise temperature and humidity control for wine cellars.
Q: What size wine cellar is it suitable for?
A: It is ideal for wine cellars up to 2,000 cubic feet.
Q: Is it suitable for residential or commercial applications?
A: Yes, it is designed for both residential and commercial wine storage environments.
Q: Does it require professional installation?
A: Professional installation is recommended to ensure optimal performance and proper setup.
Q: What type of power supply does it use?
A: The system operates on a standard 60Hz power supply, compatible with U.S. electrical systems.
Q: Is maintenance required?
A: Minimal maintenance is needed, such as periodic filter cleaning or replacement.
Maintenance Tips
- Clean Air Filters: Check and clean filters monthly to maintain airflow and prevent dust buildup. Replace filters as needed.
- Inspect Coils: Clean the evaporator and condenser coils every 3–6 months to ensure cooling efficiency.
- Check Condensate Drain: Inspect the drain line regularly for blockages and clean it to avoid water leakage or buildup.
- Verify Fan Operation: Ensure the fans are running smoothly and are free of debris or obstructions.
- Monitor System Performance: Regularly check for consistent temperature and humidity levels to ensure proper function.
- Inspect Duct Connections: Ensure ductwork is secure and free of leaks for efficient air distribution.
- Annual Professional Service: Schedule a yearly inspection by a qualified technician to assess refrigerant levels, electrical components, and overall performance.
