Katool Full Rise Scissor Lift - KT-X95

Katool Full Rise Scissor Lift - KT-X95

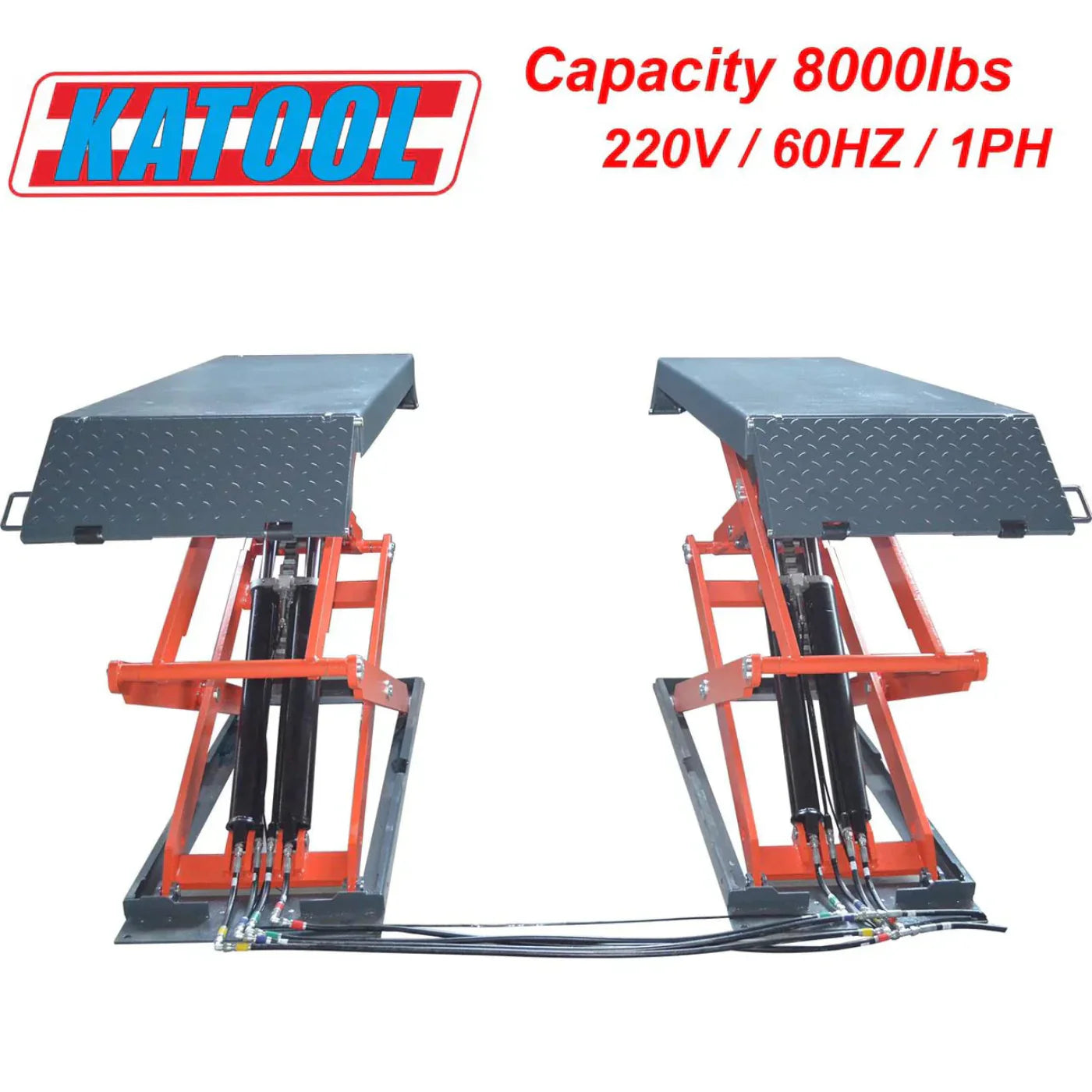

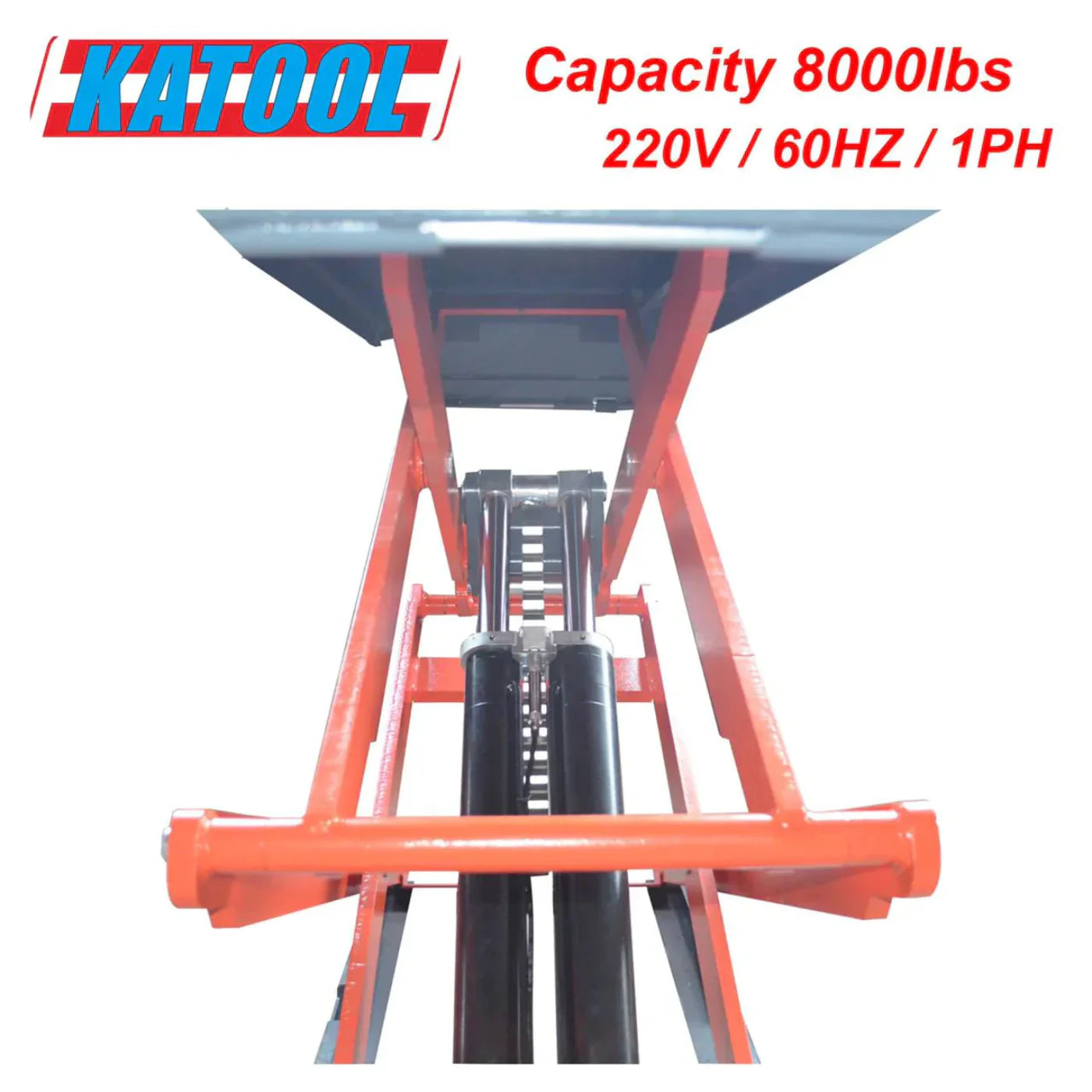

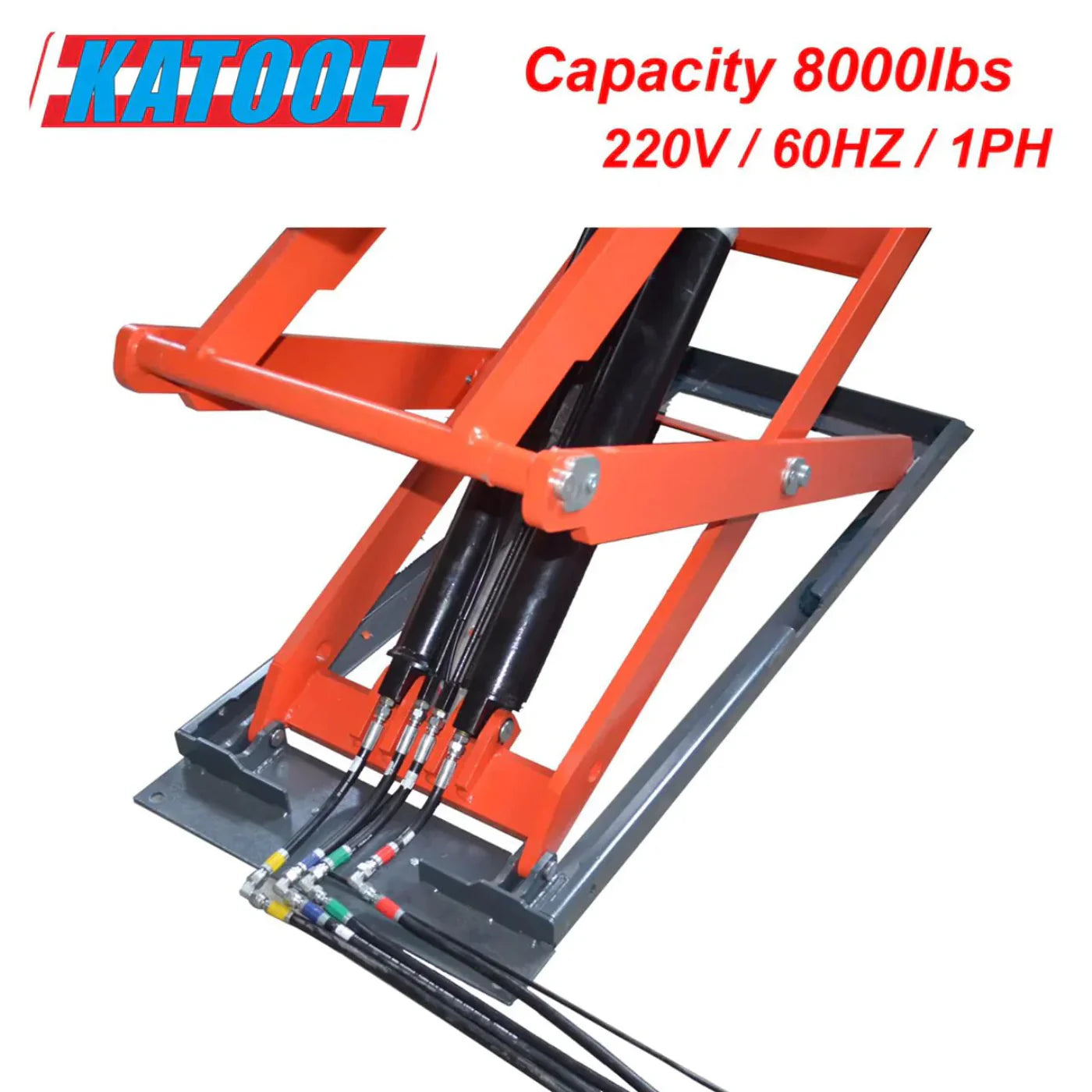

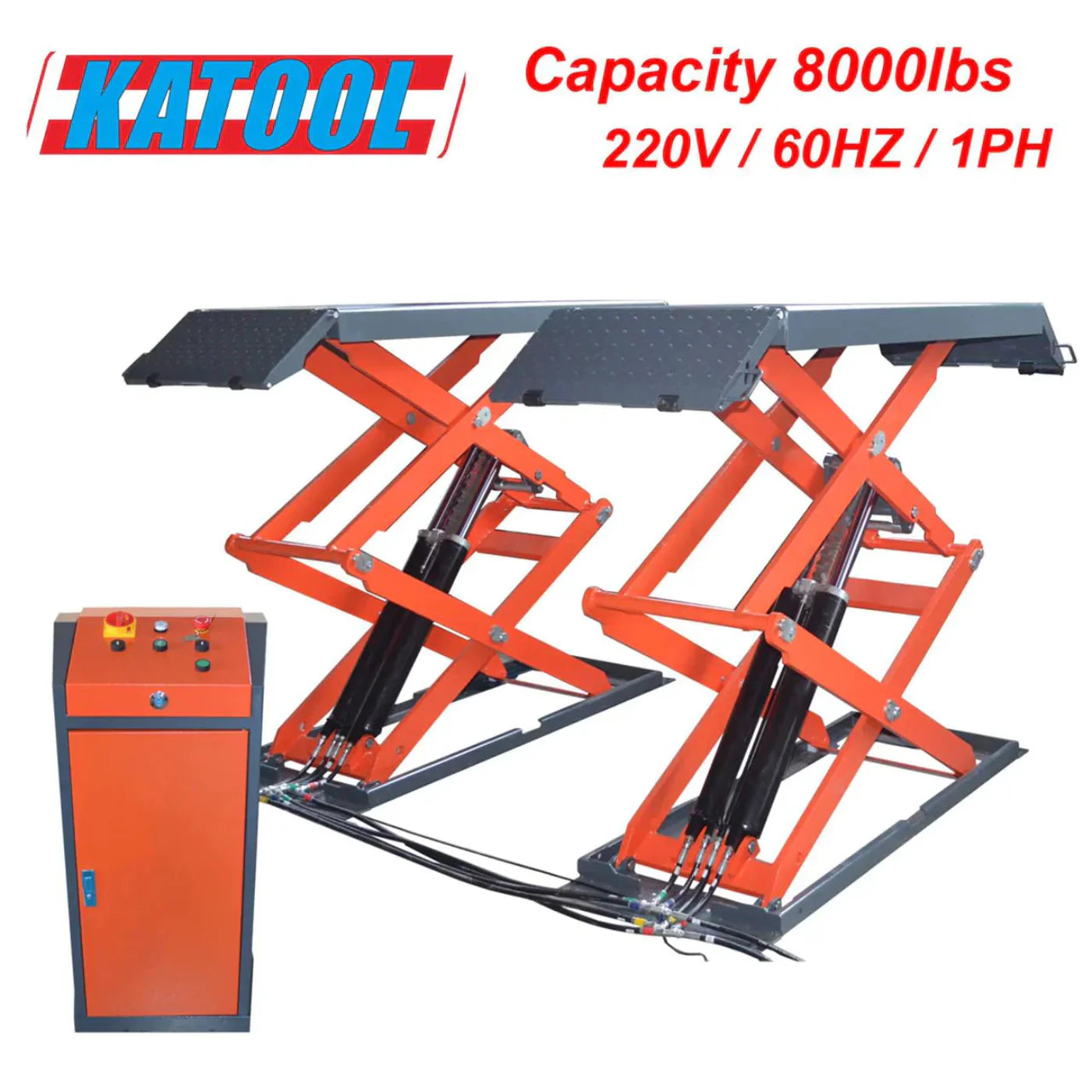

The Katool KT-X95 Full Rise Scissor Lift is a powerhouse with an 8000lbs lifting capacity. Backed by CE Approval and Certification, it surpasses industry standards with a dynamic loading capacity of 115% and a rigorous 150% static loading capacity test. The flush mount design and innovative starting-up system enhance its sleek functionality, while the pneumatic safety release ensures secure operations. With a 24V safe control system, height limit switch, and composite rubber lifting blocks, safety is paramount. The drive-up ramps lock design accommodates long vehicles, and the top-level hydraulic system, coupled with an aluminum motor featuring a cooling fan, ensures optimal performance during extended use. Note: This unit requires a connection to a compressed air source for operation.

Features

• 8000lbs(3500KG) lifting capacity

• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

• Flush mount design

• Starting-up system design

• Penumatic safety release

• 24V safe control system

• Height limit switch

• Composite rubber lifting blocks included

• Comes with self-lubricated bushing and bearing

• Drive-up ramps lock design as platform extension for long vehicles

• Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working

• The unit needs to be connected to a compressed air source.

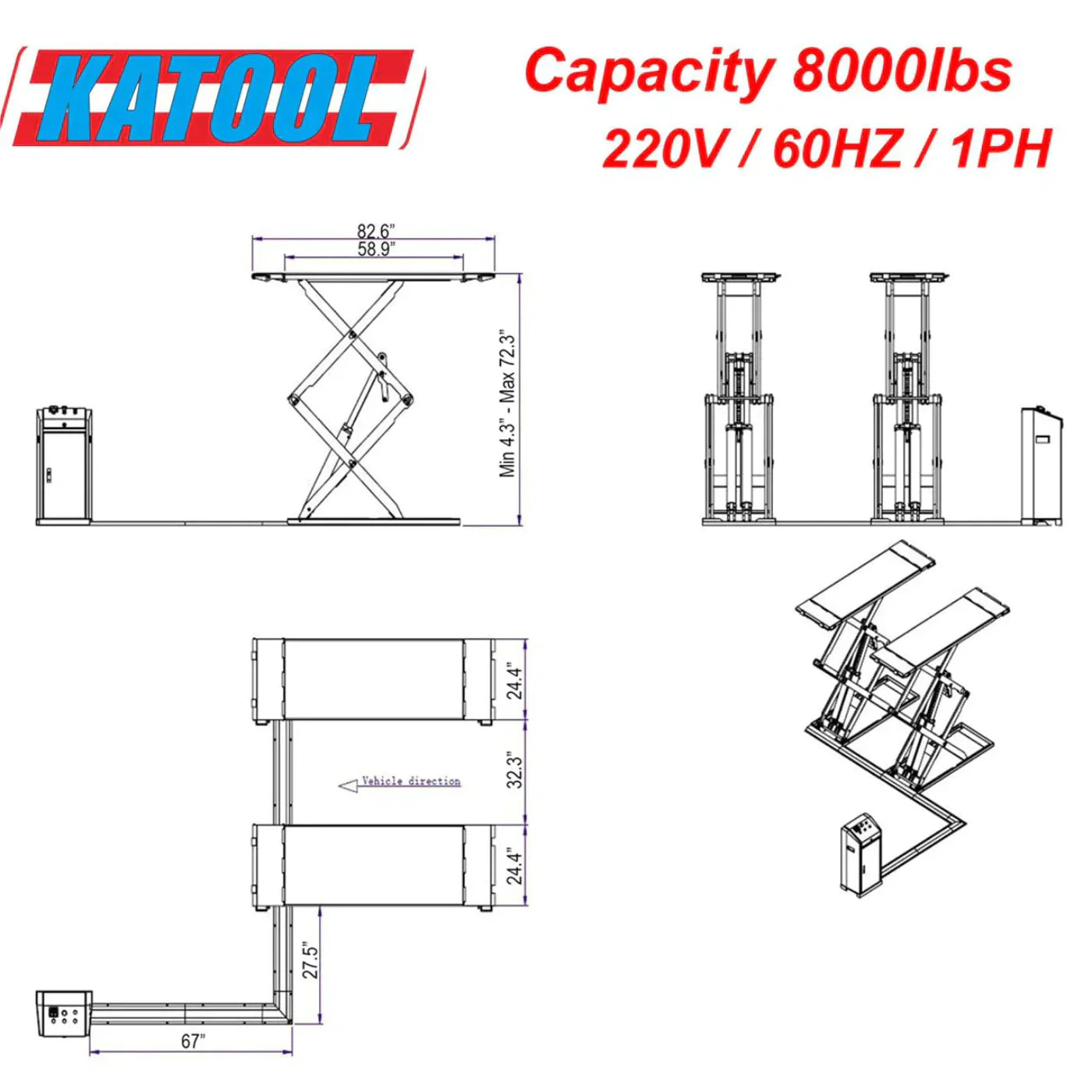

Specifications

Max.lifting capacity	8000 lbs
Lifting height	72.3 inch
Lifting time	≤50S
Platform length	58.9 inch
Platform width	24.4 inch
Motor power	2.2kw
Rated oil pressure	20MPa
Air pressure	6-8kgf/c ㎡

Includes

- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

What our Expect Think

The Katool KT-X95 Full-Rise Scissor Lift is a powerful and space-efficient lifting solution for professional auto shops and garages. Here’s why it stands out:

Heavy-Duty Lifting Capacity – Supports up to 9,500 lbs, making it ideal for a variety of vehicles, from sedans to light trucks.

Full-Rise Lifting Height – Provides ample clearance for undercarriage work, making it perfect for detailed repairs.

Hydraulic-Powered System – Ensures smooth, stable lifting with minimal maintenance.

Compact & Space-Saving Design –

Scissor-style lift eliminates the need for bulky posts.

Flush-mount installation option for a clean and clutter-free workspace.

Advanced Safety Features –

Multi-position safety locking system for secure lifting.

Heavy-duty steel construction for long-term durability.

User-Friendly Controls –

Intuitive control panel for precise height adjustments.

Drive-on ramps for easy vehicle positioning.

Q&A

Q: What is the Katool KT-X95 used for?
A: It is a full-rise scissor lift designed for vehicle maintenance, repairs, and inspections.

Q: What is the maximum lifting height?
A: Provides a full-rise lift, making it ideal for undercarriage work.

Q: What is the weight capacity?
A: Supports a variety of cars and light trucks.

Q: What power system does it use?
A: Operates on an electric-hydraulic system for smooth and powerful lifting.

Q: Is it space-efficient?
A: Yes, its scissor-style design saves floor space compared to traditional two-post lifts.

Q: Is it suitable for professional and home use?
A: Yes, it is ideal for auto repair shops and serious home mechanics.

Maintenance Tips

• Check hydraulic fluid levels regularly and refill if needed.
• Lubricate scissor arms, pivot points, and rollers monthly.
• Inspect hydraulic hoses and seals for leaks or wear.
• Test safety locks and lifting mechanisms to ensure proper function.
• Keep the lift platform clean to prevent debris buildup and maintain efficiency.
