Katool Mid Rise Scissor Lift - KT-X80-PNEUMATIC

Katool Mid Rise Scissor Lift - KT-X80-PNEUMATIC

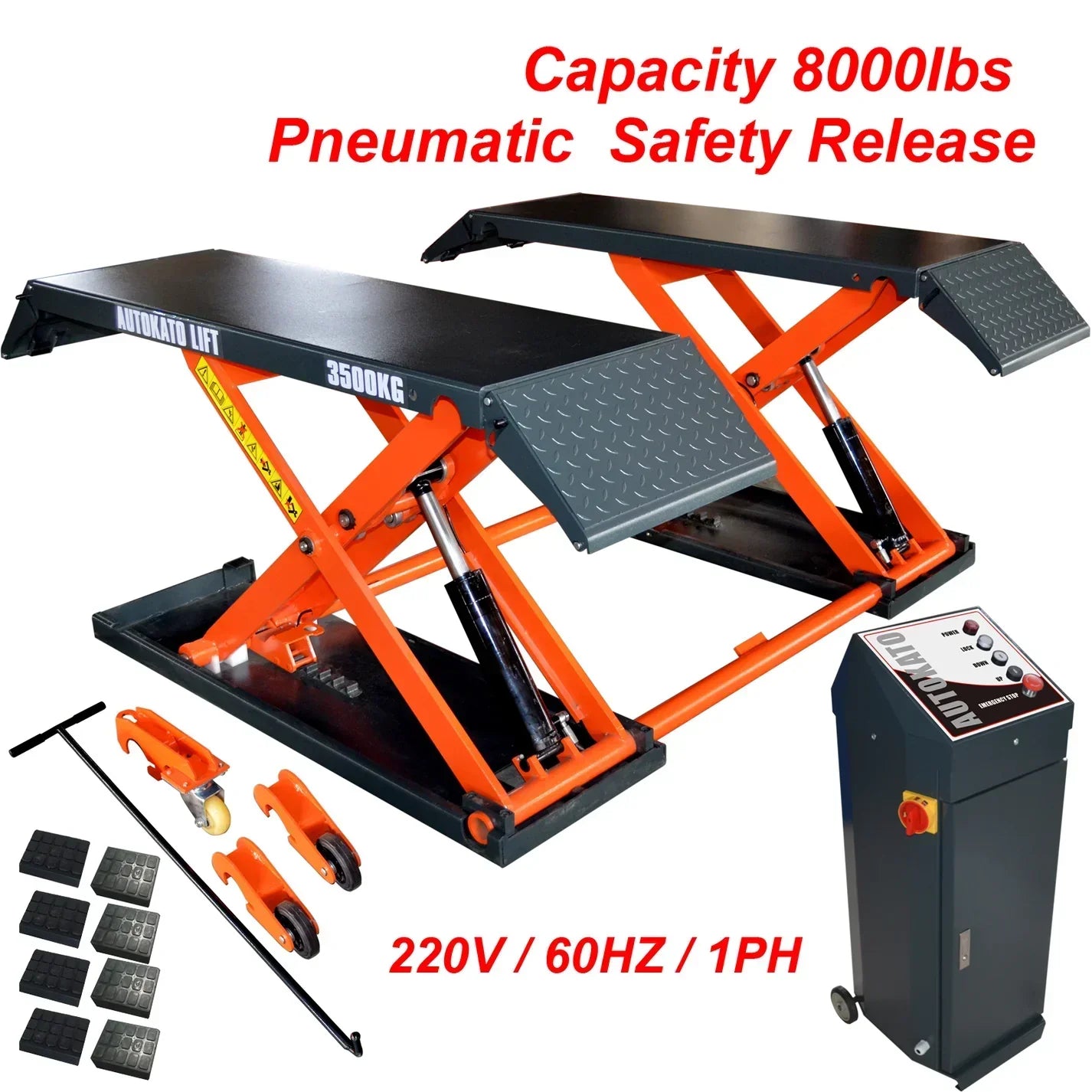

The Katool KT-X80-PNEUMATIC Mid Rise Scissor Lift is a powerhouse with an 8000lbs lifting capacity. CE Approved and Certified, it surpasses dynamic and static loading standards, ensuring robustness and safety. Whether mobile or fixed mount, its innovative starting-up system and pneumatic safety release offer seamless operation. The 24V safe control system, height limit switch, and composite rubber lifting blocks prioritize user safety. With drive-up ramps lock design for extended platform length and a portable kit for effortless mobility, this lift is tailored for garage flexibility. Experience top-level hydraulic performance with an aluminum motor featuring a cooling fan for prolonged usage. Note: Connect to a compressed air source for optimal performance.

Features

• 8000lbs(3500KG) lifting capacity

• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

• Mobile or fixed mount design

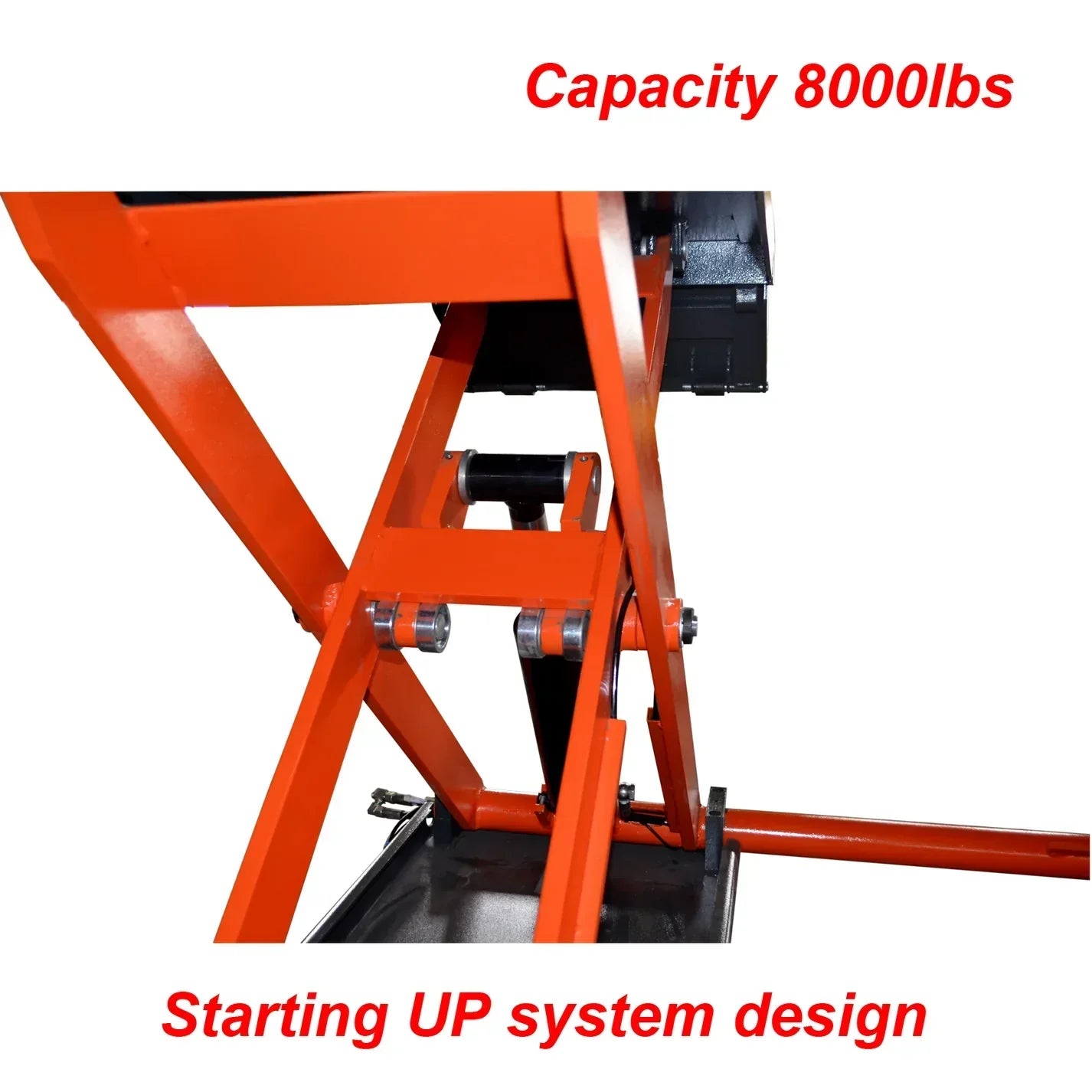

• Starting-up system design

• Pneumatic safety release

• 24V safe control system

• Height limit switch

• Composite rubber lifting blocks included

• Comes with self-lubricated bushing and bearing

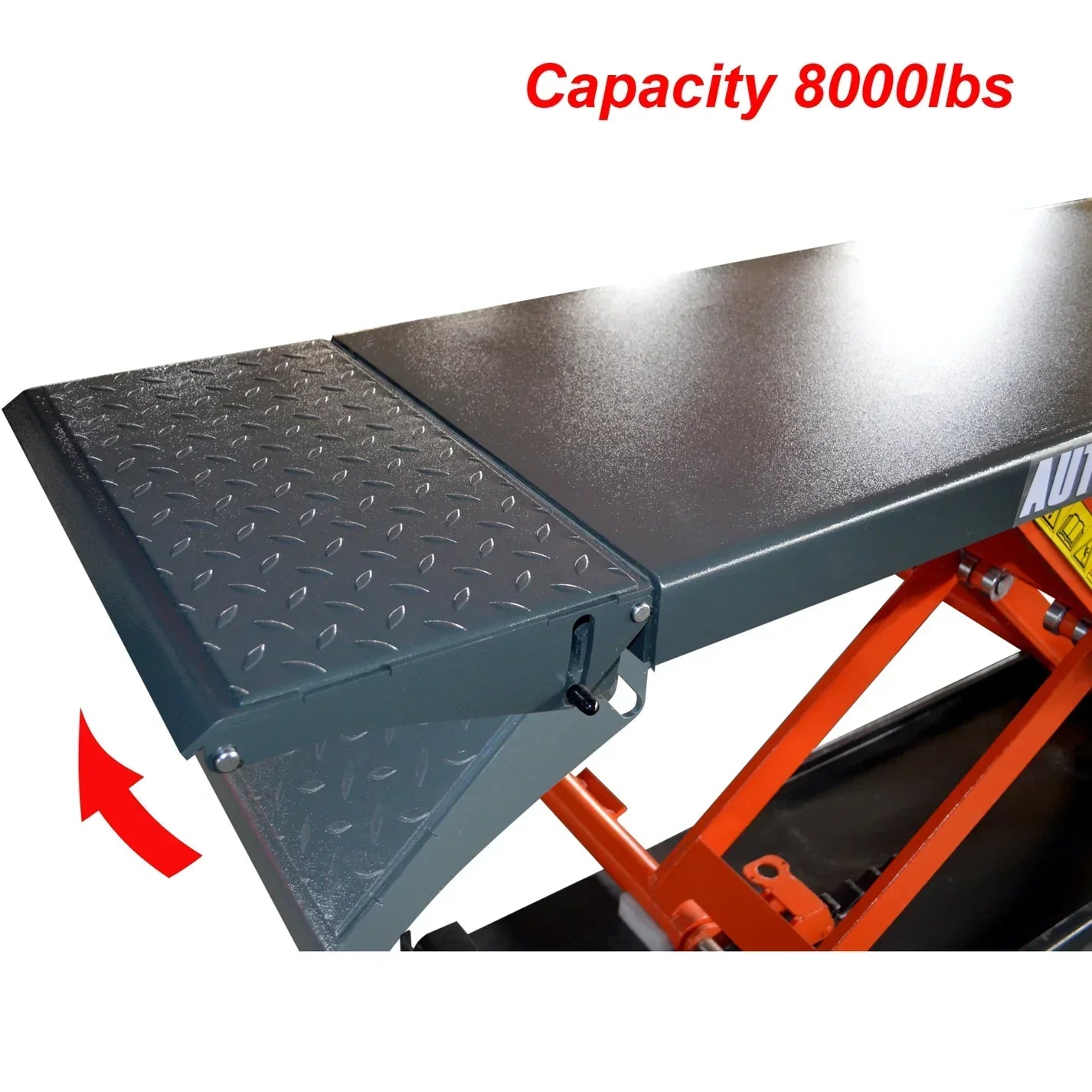

• Drive-up ramps lock design as platform extension for long vehicles

• Portable, mobile kit included making the lift move in your garage easily

• Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working with 110(220)V/ 60HZ/ 1PH

• The unit need to be connected to a compressed air source. For customers without an air compressor, we recommend our electric model.

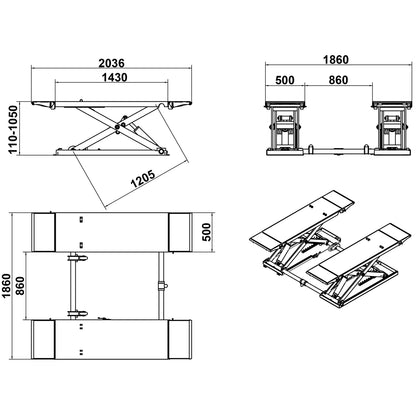

Specifications

Lifting Capacity
8000lbs.(3500KG)
Max. Lifting Height	40.15"/1020mm
Min. Height	4.25"/110mm
Platform Length	57"/1450mm
Length Overall	83.5"/2120mm
Platform Width	20.5"/520mm
Width Overall	76.75"/1950mm
Motor
110 (220)VAC/60HZ/1PH
Net Weight	1213lbs/550KG

Includes

- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.

What our Expect Think

• Check air pressure and connections regularly for leaks.
• Lubricate scissor arms, pivot points, and rollers monthly.
• Inspect pneumatic hoses and seals for wear or damage.
• Test safety locks and lifting mechanisms to ensure proper function.
• Keep the lift platform clean to prevent debris buildup and ensure efficiency.

Q&A

Q: What is the Katool KT-X80-PNEUMATIC used for?
A: It is designed to lift vehicles to a mid-rise height for maintenance, repairs, and detailing.

Q: What type of power system does it use?
A: This model operates on a pneumatic (air-powered) system for efficient lifting.

Q: What is the lifting capacity?
A: Suitable for a variety of cars and light trucks.

Q: What is the maximum lifting height?
A: Provides a mid-rise lift, ideal for tire, brake, and suspension work.

Q: Is it portable?
A: Yes, its compact design allows for easy storage and mobility

Q: Is it suitable for home garages and professional shops?
A: Yes, it works well for both professional auto shops and home mechanics.

Maintenance Tips

• Check air pressure and connections regularly for leaks.
• Lubricate scissor arms, pivot points, and rollers monthly.
• Inspect pneumatic hoses and seals for wear or damage.
• Test safety locks and lifting mechanisms to ensure proper function.
• Keep the lift platform clean to prevent debris buildup and ensure efficiency.
