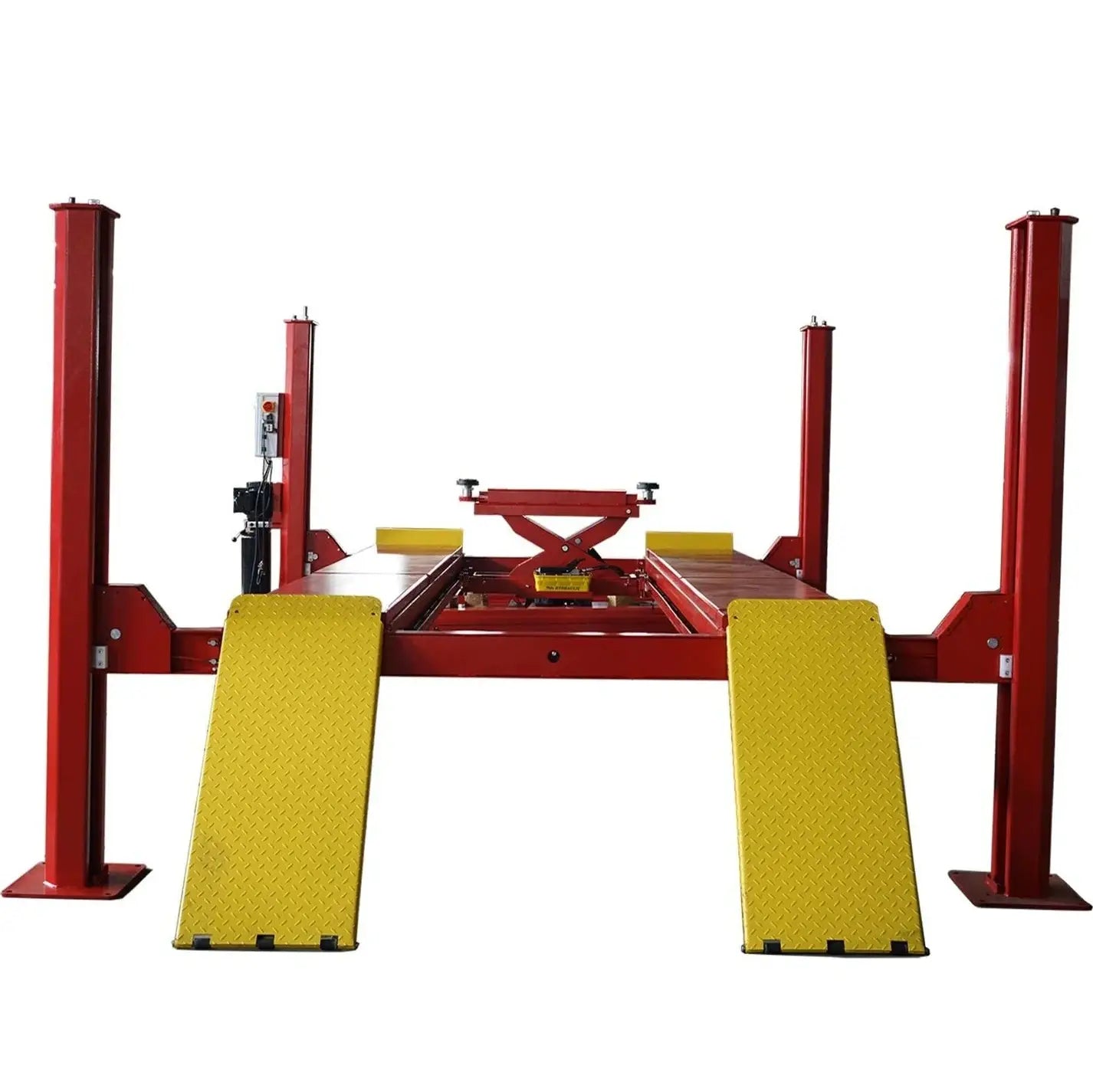

Katool KT-4H150 Heavy Duty 4-Post Alignment Lift 15,000lbs (Rolling Jack Included) - KT-4H150

Katool KT-4H150 Heavy Duty 4-Post Alignment Lift 15,000lbs (Rolling Jack Included) - KT-4H150

The Katool KT-4H150 Heavy Duty 4-Post Alignment Lift – a robust solution with a powerful 15,000 lbs lifting capacity. This lift is CE approved and certified, meeting the 115% dynamic loading capacity standard and passing a rigorous 150% static loading capacity test. Featuring a single-point manual safety lock release, it ensures secure and controlled lifting operations. Equipped with four mechanical locking devices, each with primary and secondary safety locks, this lift prioritizes safety. The powerside column's flexible installation options, at both sides, front, or rear, add convenience to your workspace. Non-skid diamond platforms and adjustable safety lock ladders provide stability and adaptability. Included are turn tables for wheel alignment, enhancing its versatility. The high-quality hydraulic system, powered by a 3KW motor, is available in 220V/60HZ/1PH or optional 110V/60HZ/1PH, ensuring reliable and efficient lifting. Additionally, one 6000 lbs rolling jack is included for added functionality.

Features

• 15000lbs lifting capacity

• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

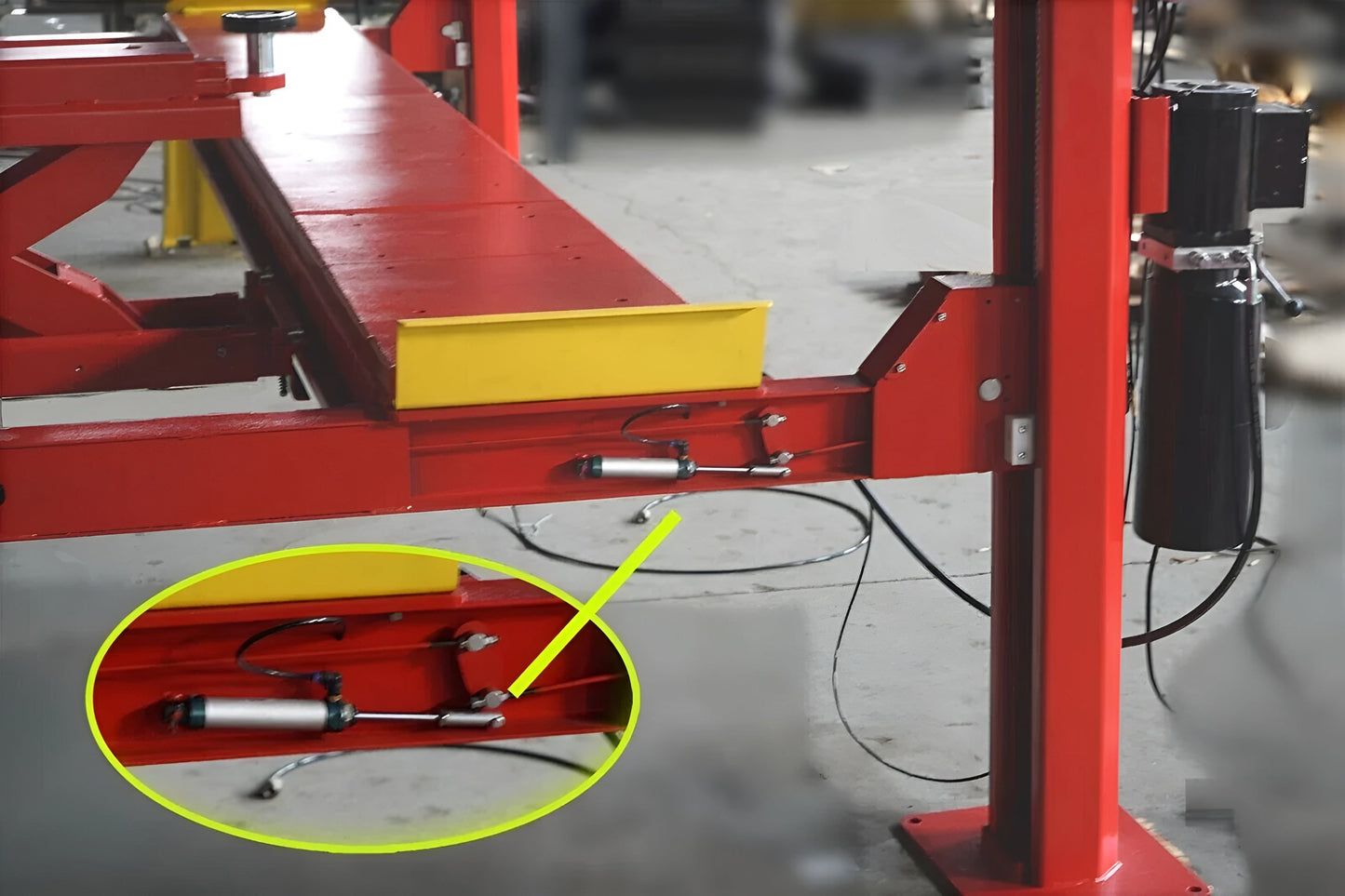

• Single Point Manual Safety Lock Release

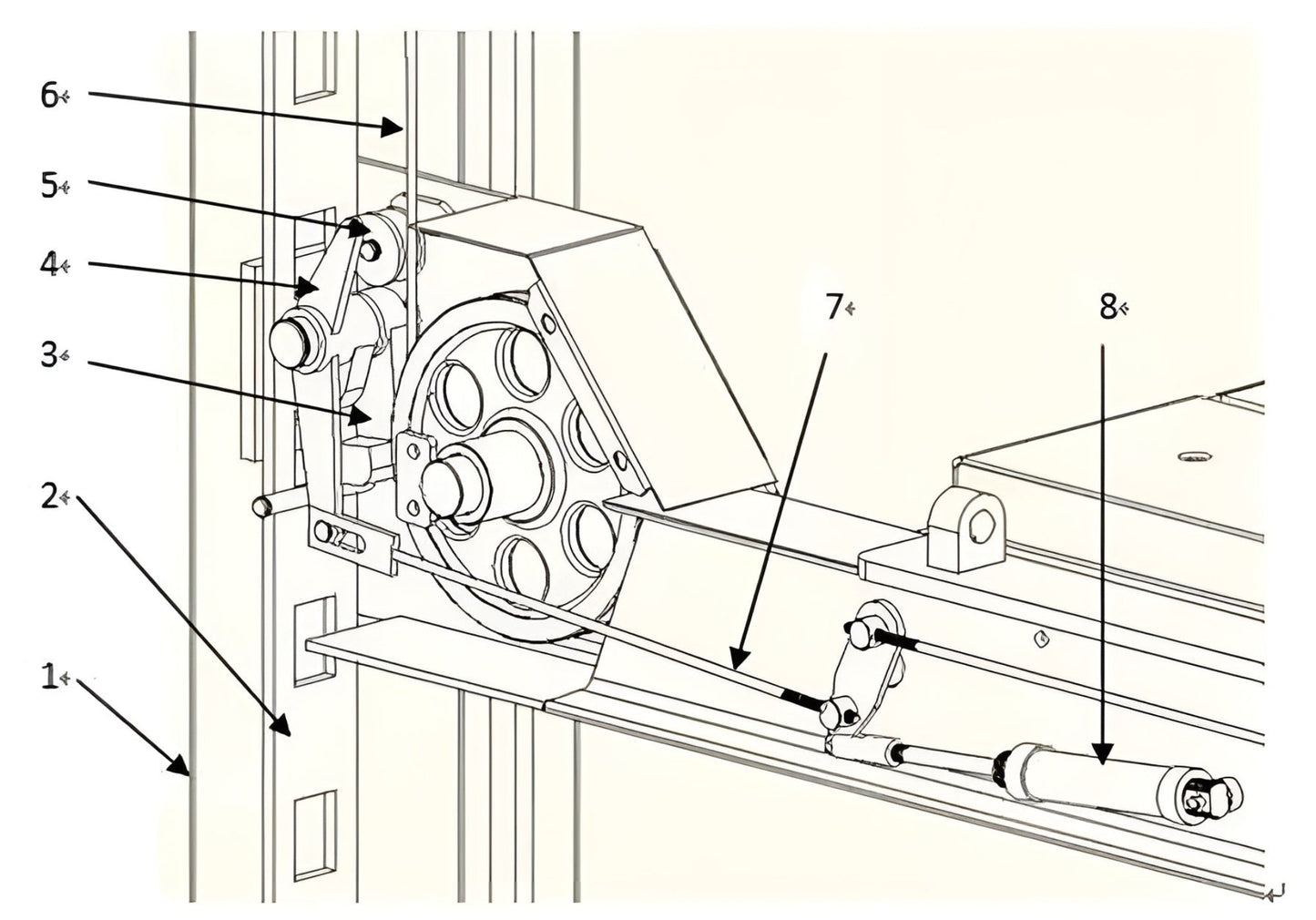

• Four mechanical locking devices, each equipped with both primary and secondary safety locks.

• Powerside column can be installed at both sides, front or rear.

• Non-skid diamond platforms and adjustable safety lock ladders.

• One 6000lbs rolling jack is included

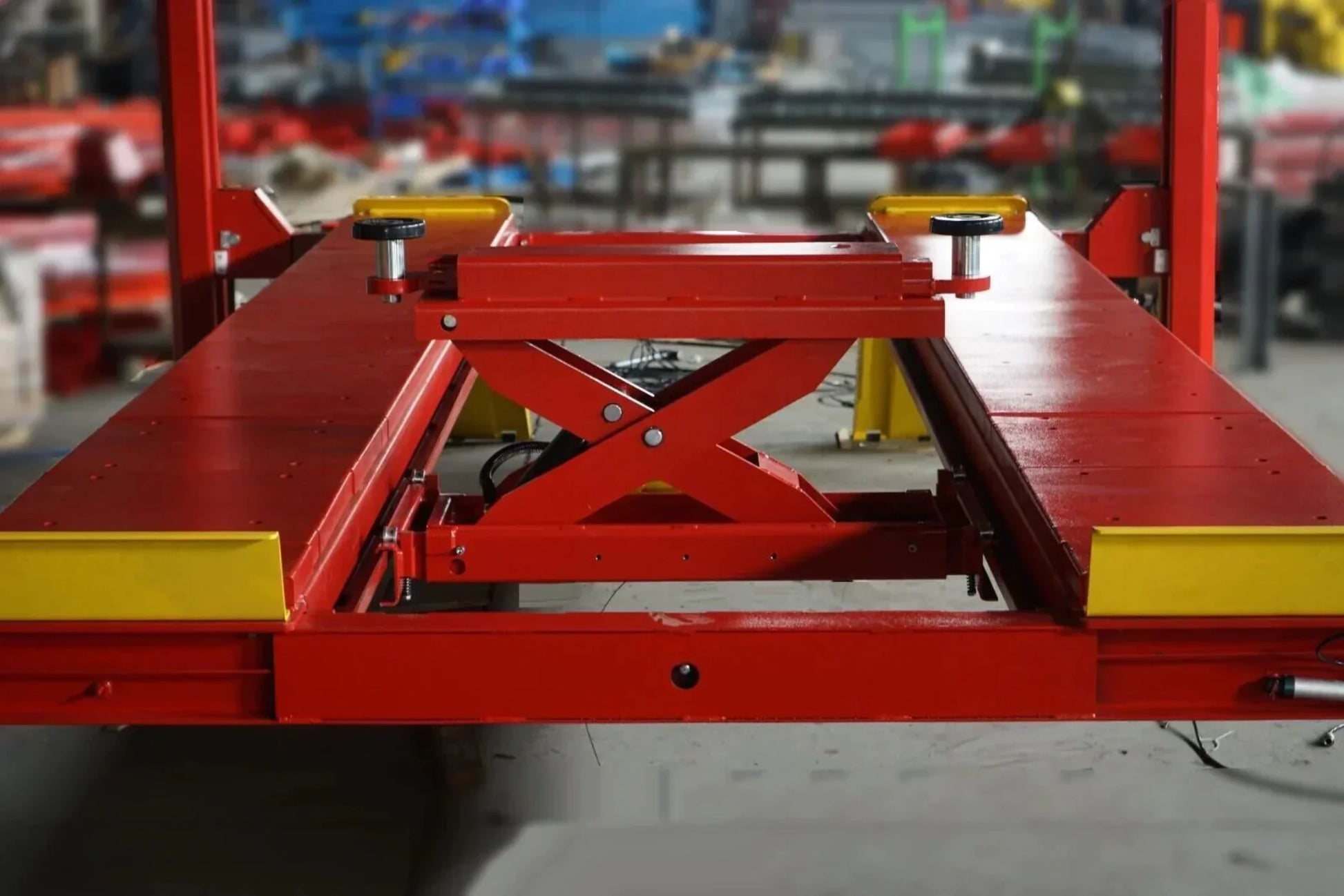

• Comes with turn tables for wheel alignment

• High-quality hydraulic system, 3KW motor with 220V/60HZ/1PH or 110V/60HZ/1PH (Optional)

Specifications

 Includes

- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.

What our Expect Think

• High-Capacity & Versatile – Handles up to 15,000 lbs, ideal for heavy-duty vehicles.
• Precision Alignment – Designed for wheel alignment with superior stability.
• Includes Rolling Jack – Enhances lift versatility for easier wheel service.
• Durable & Reliable – Heavy-duty steel construction ensures long-term performance.
• Smooth Operation – Hydraulic system provides efficient and controlled lifting.

Q&A

Q: What is the weight capacity of this lift?
A: It has a 15,000lb lifting capacity, ideal for heavy-duty vehicles.

Q: Does it include a rolling jack?
A: Yes, a rolling jack is included for added versatility.

Q: What type of vehicles is it suitable for?
A: Designed for cars, trucks, and commercial vehicles requiring alignment services.

Q: What type of lift system does it use?
A: It features a 4-post design for stability and precision.

Q: Is it compatible with wheel alignment systems?
A: Yes, it’s specifically designed for alignment procedures.

Q: What power requirements does it have?
A: Operates on standard electrical power for professional workshop use.

Q: Is installation included?
A: Installation is not included but can be arranged separately.

Maintenance Tips

• Check hydraulic fluid regularly and refill if low.
• Lubricate lift cables, rollers, and moving parts monthly.
• Inspect safety locks and latches for proper engagement.
• Tighten bolts and fasteners periodically to ensure stability.
• Keep lift surfaces clean to prevent dirt buildup and corrosion.
