Dannmar Dlr-6p 6,000-Lbs Capacity Low-Rise Portable Lift - 5175329
Dannmar Dlr-6p 6,000-Lbs Capacity Low-Rise Portable Lift - 5175329
Regular price
$2,007.99
Regular price
$2,361.99
Sale price
$2,007.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Dannmar Dlr-6p 6,000-Lbs Capacity Low-Rise Portable Lift - 5175329

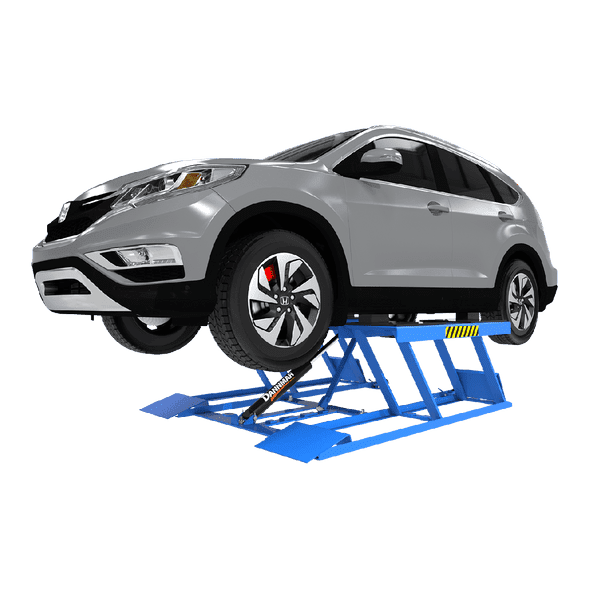

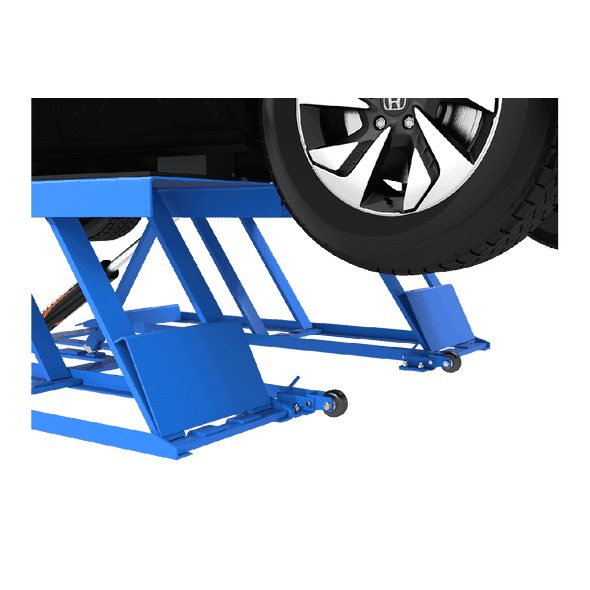

The DLR-6P is portable and smart-sized. With the ability to collapse to just 4" high, most low-stance vehicles find adequate undercarriage clearance. And this small-footprint model is perfect for tight spaces around the shop, or to simply store or move the lift out of the way. The rugged wheels are practically indestructible. One person can easily move the DLR-6P around shops or garages.
Features
-
6,000-lb. lifting capacity
-
Tow handle makes it easy to move lift from bay to bay or to where the disabled car is
-
Electric/hydraulic power system
-
Multi-position safety locks
-
Rubber lifting blocks included
-
Dropped cross bar for added clearance for low vehicles and low frames
-
Heavy-duty, long lasting steel-channel frame
Specifications
| SKU# | 5175328 |
|---|---|
| Lifting Capacity | 6,000 lbs. (2,724 kg) |
| Lowered Height | 4” (102 mm) |
| Max. Lifting Height (w/o Adapters) | (w/o Adapters) |
| Max. Lifting Height + 1.5" Blocks | 27.5” (699 mm) |
| Max. Lifting Height + Optional 3" | Blocks |
| Pad Length | 53” (1,346 mm) |
| Overall Width | 70.5” (1,791 mm) |
| Overall Length | 82” (2,083 mm) |
| Tow Cart Height | 47.5” (1,209 mm) |
| Tow Cart Width | 14.75” (374 mm) |
| Tow Cart Depth | 8.25” (210 mm) |
| Lifting Time | 45 sec |
| Motor | 110-VAC / 50-60 Hz / 1Ph |
