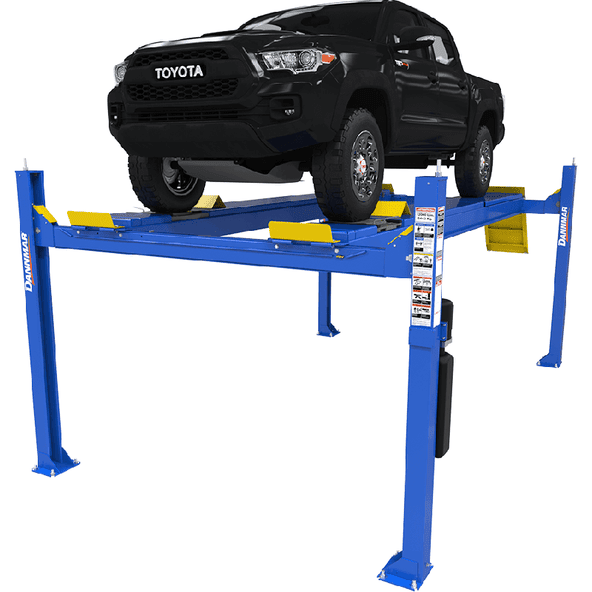

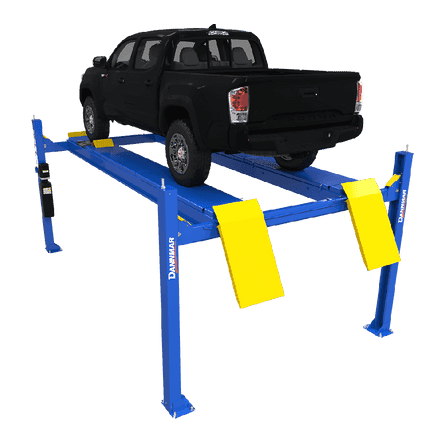

Dannmar D4-12A 12,000-lbs. Capacity Alignment Four-Post Lift / Includes Slip Plates
Dannmar D4-12A 12,000-lbs. Capacity Alignment Four-Post Lift / Includes Slip Plates
Couldn't load pickup availability
Dannmar D4-12A 12,000-lbs. Capacity Alignment Four-Post Lift / Includes Slip Plates and Turnplates
The Dannmar D4-12A alignment lift comes standard with robust 10.5” diameter dual-hub cable sheaves within the runway and cross tubes and 2.25” diameter sheave axles. A heavy-duty 1/2” diameter aircraft-quality stainless-steel lifting cable runs through each of the four columns. Designed for non-stop use and totally resistant to rubbing and other abrasions from weather, chemicals, and hydraulic oil. Aircraft-quality stainless steel and aluminum pneumatic cylinders provide years of trouble-free service. Other features include electric/hydraulic power, push button pneumatic lock release, adjustable height locking positions, an optional rolling bridge jack, and more.
Features
-
12,000 pound lifting capacity
-
CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
-

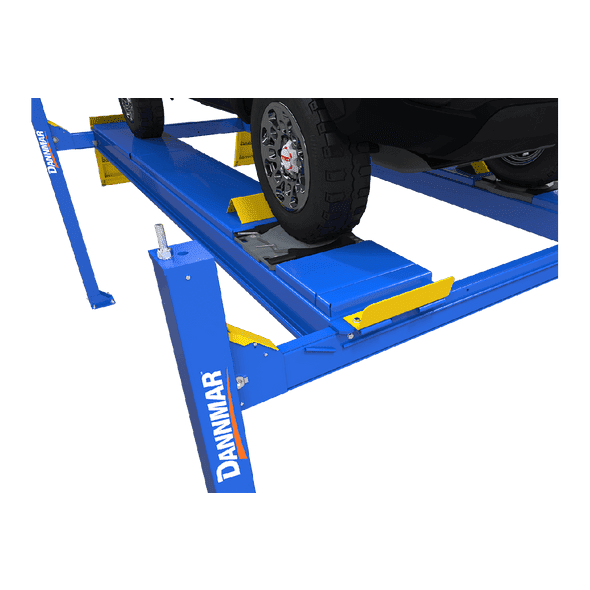

Heavy-duty turn plates and integrated rear slip-plates
-
Multi-position turn plate pockets
-
Automatic leveling system
-
Multiple auto-leveling locking positions
-
Runways include rail-kit for optional accessories
-
Electric / hydraulic power system
-
Single hydraulic cylinder mounted underneath runway
-
Fully enclosed lifting cables, safety locks, and sheaves
Specifications
| Actual Door Height (in.) | 96" |
|---|---|
| Actual Door Thickness (in.) : 3" | 3" |
| Max. Lifting Height | 79.5" (2,019 mm) |
| Ramp Clearance* (Max. Rise) | 49" (1,245 mm) |
| Height of Columns | 92" (2,337 mm) |
| Drive-Thru Clearance | 98” (2,482 mm) |
| Overall Width | 127.5" (3,239 mm) |
| Width Between Columns | 115.75" (2,940 mm) |
| Overall Length | 233.5" (2,940 mm) |
| Outside Length | 194.75” (4,947 mm) |
| Width Outside Columns | 142.5" (3,620 mm) |
